ACT HD/Race Sprung 6 Pad
ACT HD/Race Sprung 6 Pad
SKU: SKU:ACT NZ2-HDG6
Get 10% off at checkout. New Price: $711.00 USD
Couldn't load pickup availability
PayPal Secure Checkout
Shipping in US and CA
ACT Part #NZ2-HDG6
HD/Race Sprung 6 Pad
Rated at 574ft/lbs of torque (778Nm); ; measured at the Engine/Crank
Disc Material: Ceramic
Weighs 17.6lbs

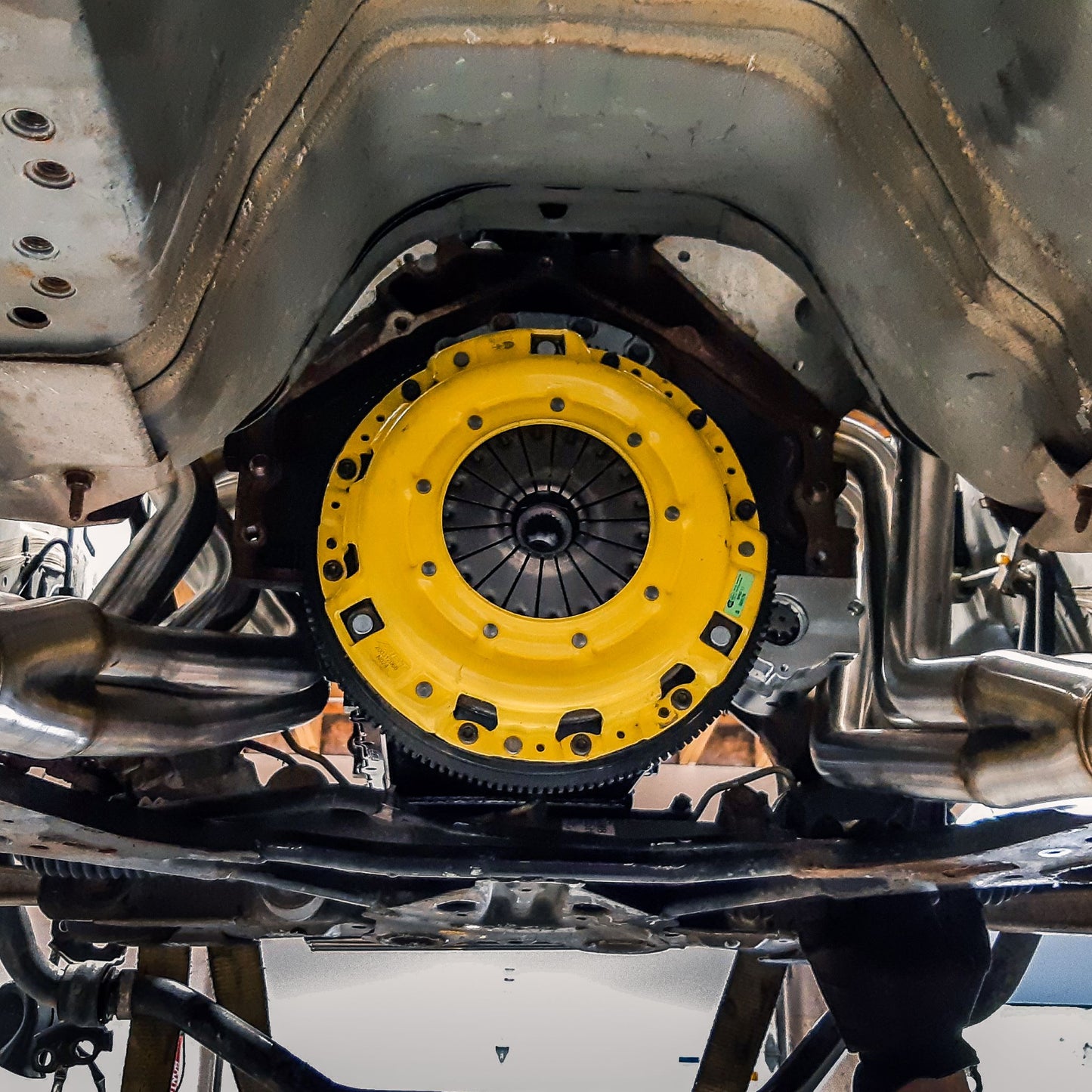

NZ2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
| Feel | Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Specifications
Specifications
Fitment
Fitment
Included Components
Included Components
Choose Your Flywheel And Clutch
Choose Your Flywheel And Clutch
Clutch options:
| SINGLE: | Rated Torque |
| ACT HD/Race Sprung 6 Pad | 574ft/lbs |
| ACT HD/Performance Street Sprung | 448ft/lbs |
| Competition Clutch | 575ft/lbs |
| MULTI(7.25"): | |
| Tilton cerametallic twin | 760ft/lbs |
| Tilton metallic triple | 1020ft/lbs |
| Only For JZ kit - Street Twin ST-246 (9.7"): | |
| Tilton ST-246 sprung-hub organic | 850ft/lbs |
For other combinations contact us.
We offer three flywheel options to cater to each individual's needs: SINGLE, MULTI(7.25") or Street Twin ST-246(9.7"), all options are extremely comprehensive and include everything you need for a seamless swap.
Our SINGLE option includes a single plate flywheel. We recommend to use the ACT clutch or the Competition Clutch for 350Z/370Z/G35/G37.
Our MULTI(7.25") option utilizes a flywheel and is designed to work with the TILTON 7.25” racing clutch, that is available in two options: dual (cerametallic twin disc) or triple (metallic triple disc).
The Street Twin ST-246 (9.7") *(Only For JZ kit) option uses our flywheel which only works with the ST-246 clutch kit, available with sprung-hub organic disc.
Installation Instructions
Installation Instructions
General (JZ/UZ/Rotary/Honda-K)
1. Follow Video Instructions:
2. Check HRB Gap:
Important: check the gap between the HRB and Clutch by following the Tilton instructions. If gap is not correct it will result in clutch engagement/disengagement issues.
Engine Specific Info:
Other Resources:
Tilton HRB Instructions/Clutch Measurements →
Trouble Shooting Common HRB Problems →
Internal Slave Hydraulic Lines Torque Specs →
Rotary (Additional Info):
Video Instructions:
Video with instructions on mounting the bellhousing to the engine:
FD RX7 Restomod Project *by Billy Johnson:
Detailed Install and why the CD009 is the best option →
Detailed info on choosing a clutch and installing it →
Honda K-Series (Additional Info):
Resources:
Transmission Compatibility
Transmission Compatibility
Why the Nissan CD009 is the Best Choice for Manual Swaps →
Note: We recommend to go with a transmission 2006 or newer to eliminate issues with synchronizers.
The following transmission models are compatible with our Adapter Systems:
| Model: | Model Series: | Production Date: | Part Number: |
| 350Z DE | Z33 | 06/02 - 10/02 | 32010-CD000 |
| Z33 | 10/02 - 02/03 | 32010-CD003 | |
| Z33 | 02/03 - 04/03 | 32010-CD005 | |
| Z33 | 04/03 - 07/03 | 32010-CD006 | |
| Z33 | 07/03 - 07/04 | 32010-CD008 | |
| Z33 | 07/04 - 11/06 | 32010-CD009 | |
| 350Z HR | Z33 | 11/06 - 07/07 | 32010-JK400 |
| Z33 | 07/07 + | 32010-JK41B | |
| 370Z | Z34 | 06/09+ | 320B0-1EA0A |
| Z34 | 06/09+ | 320B0-1EA0B | |
| G35 DE | V35 | 08/02 - 02/03 | 32010-CD003 |
| V35 | 12/02 - 02/03 | 32010-CD005 | |
| V35 | 02/03 - 04/03 | 32010-CD005 | |
| V35 | 04/03 - 09/03 | 32010-CD007 | |
| V35 | 09/03 - 08/04 | 32010-CD008 | |
| V35 | 11/04+ | 32010-CD009 | |
| G35 HR | V36 Sedan | 08/06 - 06/07 | 32010-JK400 |
| V36 Sedan | 06/07 - 07/08 | 32010-JK40B | |
| G37 / Q40 | V36 Sedan | ALL | 32010-JK41A |
| G37 / Q60 | CV36 Coupe | ALL | 32010-JK41A |
*info in this chart is for reference only
Shipping
Shipping
Flat Rate Shipping in Canada and the US: $37.00 USD
We Ship Worldwide (cost will be calculated at checkout)
Our Adapter Kits will usually be shipped within 5-10 business days of the order being placed. Transit time will depend on shipping destination. When products are backordered it will be shown above the add to cart button at the top of this page.
Warranty and Returns
Warranty and Returns
Fisch Racing Tech products are sold for off road use only, and are intended for vehicles used only as such. Installation and use of this product may be in direct violation of local laws and are therefore not to be used on public roads.
The buyer is responsible for all Fisch parts after they have been received. This includes installation, monitoring condition, any alterations, and all damages sustained.
In the event of a warranty for defects, it is agreed that under no circumstances shall the seller, or manufacturer be liable for repair costs. This includes travel time, diagnosis, removal, reinstallation, shipping, or contingency expenses.
Fisch Racing Tech Warranty Coverage:
Improper installation may cause damage, or injury. It is recommended that installation be performed by a licensed professional.
Fisch manufactured parts are covered under warranty for 5 years.
Fisch flywheels carry a 1 year warranty for manufacturing defect. This does not include wear and tear, improper use, or improper installation.
Third party manufactured parts are under warranty for as long as the manufacturing party will honor. (Tilton, ARP, Goodridge, Energy Suspension, Nissan, etc.)
For all exchanges and returns, please email us at info@fischracingtech.com
Exchanges will only be made if components and packaging are in good condition.
Returns are to be initiated within 30 days of purchase.
All exchanges and returns must be sent as pre-paid, tracked parcels
For any additional questions or concerns, we are available via Email, Phone, Text, Instagram, or Facebook. Check our Contact Us page for details.
-
